Replacement for Stabilus Lift-O-Mat 094617 0350N

$61.85



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 094617 0350N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 094617 0350N quantity

Add to basket

This gas spring is also known as CA094617.

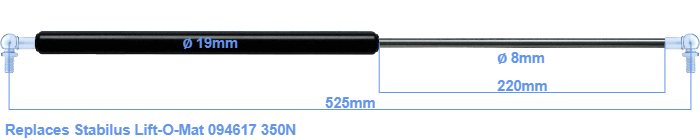

The diameter of the cylinder of this gas spring is 19 mm. The rod has a diameter of 8 mm. The rod (the chrome part) is 220 mm long. The total length of this replacement is 525 millimeter. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 485 mm. The force of this replacement is 350 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This a gas spring with the brand HAHN. Nevertheless, the force and dimensions equal.
