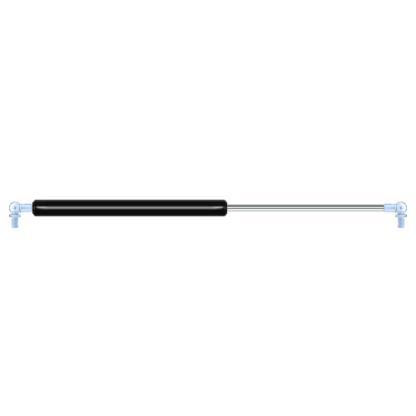

Replacement for Stabilus Lift-O-Mat 094528 0250N

$60.08



Replacement gas spring for the Stabilus Lift-O-Mat 094528 0250N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 094528 0250N quantity

Add to basket

This gas spring is also known as CA094528.

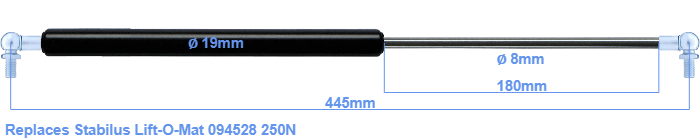

The bore of the house of this replacement gas spring is 19 mm. The rod has a diameter of 8 mm. The stroke (the retracting part) has a length of 180 mm. The total length of this replacement is exactly 445 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 405 mm. This gas spring (094528) has a force of 250 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the force and dimensions equal.
