Replacement for Stabilus Lift-O-Mat 085693 1300N

$65.73



Replacement gas spring for the Stabilus Lift-O-Mat 085693 1300N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 085693 1300N quantity

Add to basket

This gas spring is also known as CA085693.

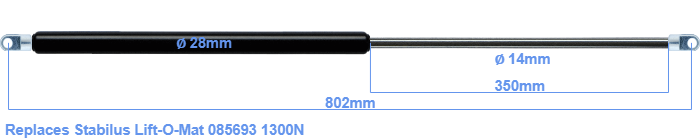

The diameter of the cylinder of this gas spring is 28 millimeters. The cross section of the rod is 14 mm. The stroke is 350 millimeter long. In total, the length is 802 millimeter. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 748 mm. This replacement gas spring has a force of 1300 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This a gas spring with the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
