Replacement for Stabilus Lift-O-Mat 085537 1300N

$51.21



Out of Stock until approximately 12/3/2024

Replacement gas spring for the Stabilus Lift-O-Mat 085537 1300N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 085537 1300N quantity

Add to basket

This gas spring is also known as CA085537.

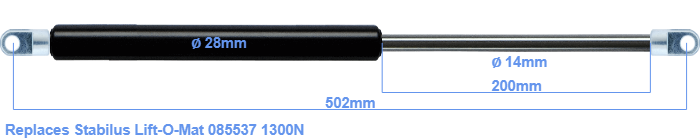

This gas spring has a cylinder diameter of 28 mm. The diameter of the rod totals 14 mm. The stroke is 200 millimeter long. The total length of this replacement is exactly 502 mm. Keep in mind that this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 448 mm. This gas spring (085537) has a force of 1300 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This replacement gas spring is a HAHN gas spring. Nevertheless, the dimensions and force are almost entirely equal.
