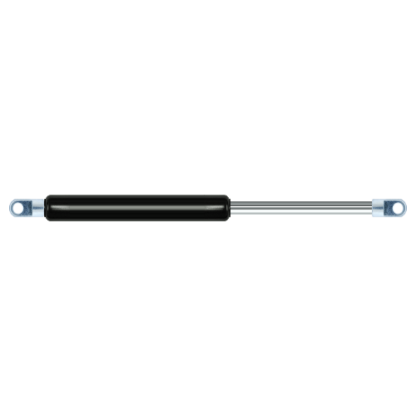

Replacement for Stabilus Lift-O-Mat 085480 2100N

$46.36



Replacement gas spring for the Stabilus Lift-O-Mat 085480 2100N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 085480 2100N quantity

Add to basket

This gas spring is also known as CA085480.

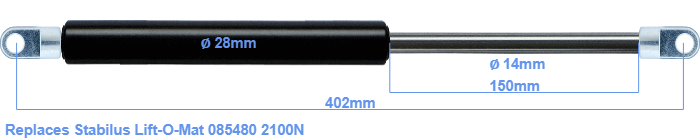

This gas spring has a cylinder diameter of 28 mm. The cross section of the rod is 14 mm. The stroke is 150 millimeter long. In total, the length is 402 millimeter. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 348 mm long (thread to thread). This replacement gas spring (085480) has a force of 2100 Newton (N). This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the dimensions and force are close to equal.
