Replacement for Stabilus Lift-O-Mat 085448 1300N

$43.85



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 085448 1300N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 085448 1300N quantity

Add to basket

This gas spring is also known as CA085448.

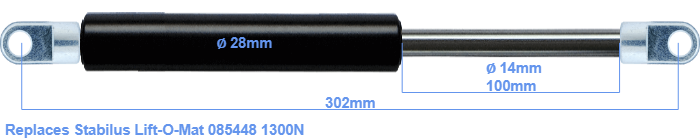

The diameter of the cylinder of this gas spring is 28 mm. The rod has a diameter of 14 mm. The stroke is 100 millimeter long. The total length of this gas strut is 302 mm. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 248 mm. This replacement gas spring has a force of 1300 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the dimensions and force are close to equal.
