Replacement for Stabilus Lift-O-Mat 085413 2100N

$43.85



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 085413 2100N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 085413 2100N quantity

Add to basket

This gas spring is also known as CA085413.

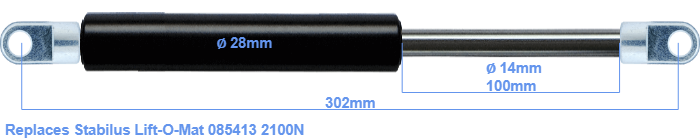

This gas spring has a cylinder diameter of 28 mm. The diameter of the rod is 14 millimeter. The chrome part is called the rod. It has a length of 100 mm. The total length of this gas strut is 302 mm. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 248 millimeter. This replacement gas spring has a force of 2100 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. The force (2100 N) and dimensions are almost identical to the original.
