Replacement for Stabilus Lift-O-Mat 084797 0600N

$43.69



Out of Stock until approximately 12/3/2024

Replacement gas spring for the Stabilus Lift-O-Mat 084797 0600N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 084797 0600N quantity

Add to basket

This gas spring is also known as CA084797.

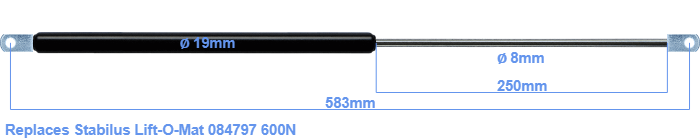

The diameter of the cylinder of this gas spring is 19 mm. The diameter of the rod is 8 millimeter. The chrome part is called the rod. It has a length of 250 mm. The total length of this replacement is exactly 583 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 545 millimeter. The force of this replacement is 600 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This replacement gas spring is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force almost equal.
