Replacement for Stabilus Lift-O-Mat 084751 0300N

$43.69



Out of Stock until approximately 12/3/2024

Replacement gas spring for the Stabilus Lift-O-Mat 084751 0300N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 084751 0300N quantity

Add to basket

This gas spring is also known as CA084751.

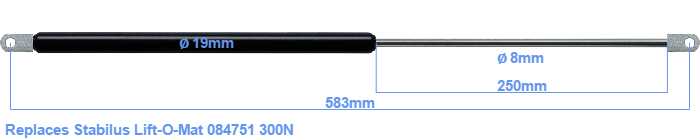

The diameter of the cylinder of this gas spring is 19 millimeters. The cross section of the rod is 8 mm. The stroke of the gas spring is 250 millimeter. The total length of this replacement is 583 millimeter. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 545 mm long (thread to thread). The force of this replacement is 300 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This a gas spring with the brand HAHN. The force (300 N) and dimensions are close to identical to the original.
