Replacement for Stabilus Lift-O-Mat 084646 0600N

$42.34



Replacement gas spring for the Stabilus Lift-O-Mat 084646 0600N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 084646 0600N quantity

Add to basket

This gas spring is also known as CA084646.

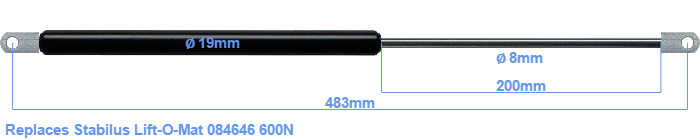

The diameter of the cylinder of this gas spring is 19 mm. The diameter of the rod totals 8 mm. The stroke of the gas spring is 200 millimeter. The total length of this gas strut is 483 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 445 mm. The force of this replacement is 600 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the dimensions and force are nearly equal.
