Replacement for Stabilus Lift-O-Mat 084611 0400N

$42.34



Replacement gas spring for the Stabilus Lift-O-Mat 084611 0400N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 084611 0400N quantity

Add to basket

This gas spring is also known as CA084611.

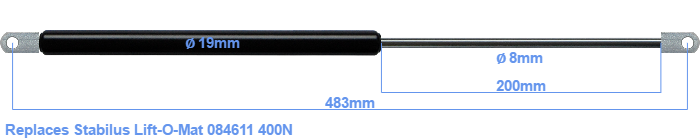

The diameter of the cylinder of this gas spring is 19 millimeters. The diameter of the rod is 8 millimeter. The stroke of the gas spring is 200 millimeter. The total length of this gas strut is 483 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 445 mm. The force of this replacement gas spring is 400 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. The force (400 N) and dimensions are close to identical to the original.
