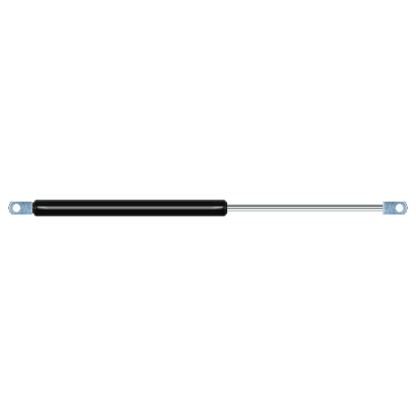

Replacement for Stabilus Lift-O-Mat 084557 0600N

$54.26



Replacement gas spring for the Stabilus Lift-O-Mat 084557 0600N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 084557 0600N quantity

Add to basket

This gas spring is also known as CA084557.



The bore of the house of this replacement gas spring is 19 mm. The diameter of the rod totals 8 mm. The stroke (the retracting part) has a length of 180 mm. The total length of this replacement gas spring is 443 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 405 mm long (thread to thread). This gas spring (084557) has a force of 600 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost entirely equal.
