$54.26
Low stock

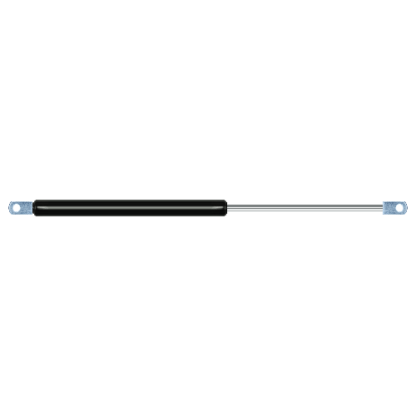

Replacement gas spring for the Stabilus Lift-O-Mat 084514 0200N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.
Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.
View this gas spring in our configurator. This gas spring is also known as CA084514.

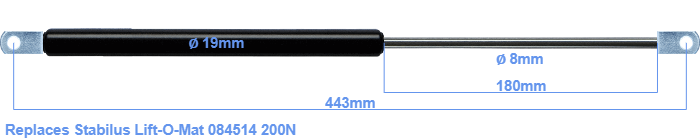

This gas spring has a cylinder diameter of 19 mm. The cross section of the rod is 8 mm. The stroke is 180 millimeter long. The total length of this replacement is exactly 443 mm. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 405 mm. The force of this replacement is 200 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This replacement gas spring is a HAHN gas spring. Nevertheless, the dimensions and force are almost entirely equal.
