Replacement for Stabilus Lift-O-Mat 084484 0600N

$40.97



Replacement gas spring for the Stabilus Lift-O-Mat 084484 0600N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 084484 0600N quantity

Add to basket

This gas spring is also known as CA084484.

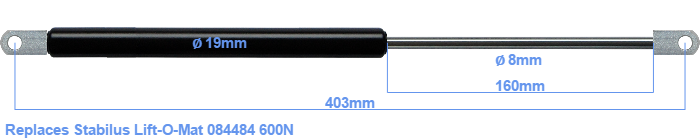

This gas spring has a cylinder diameter of 19 mm. The diameter of the rod is 8 millimeter. The stroke of the gas spring is 160 millimeter. The total length of this gas strut is 403 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 365 mm long (thread to thread). This replacement gas spring (084484) has a force of 600 Newton (N). This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
