Replacement for Stabilus Lift-O-Mat 084476 0500N

$40.97



Replacement gas spring for the Stabilus Lift-O-Mat 084476 0500N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 084476 0500N quantity

Add to basket

This gas spring is also known as CA084476.

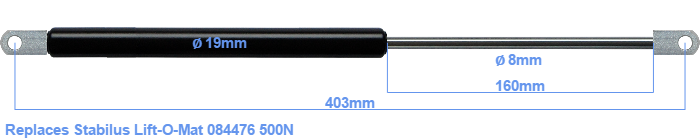

The bore of the house of this replacement gas spring is 19 mm. The diameter of the rod is 8 millimeter. The stroke is 160 millimeter long. The total length of this replacement is exactly 403 mm. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 365 mm. This replacement gas spring has a force of 500 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This replacement gas spring is a HAHN gas spring. Nevertheless, the dimensions and force are nearly equal.
