Replacement for Stabilus Lift-O-Mat 084425 0400N

$40.97



Replacement gas spring for the Stabilus Lift-O-Mat 084425 0400N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 084425 0400N quantity

Add to basket

This gas spring is also known as CA084425.

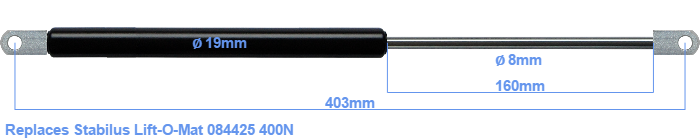

The diameter of the black cylinder of this gas spring is 19 millimeter. The rod has a diameter of 8 mm. The stroke is 160 millimeter long. The total length of this replacement is 403 millimeter. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 365 mm long (thread to thread). This replacement gas spring (084425) has a force of 400 Newton (N). This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This replacement gas spring is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost entirely equal.
