Replacement for Stabilus Lift-O-Mat 084417 0300N

$40.97



Replacement gas spring for the Stabilus Lift-O-Mat 084417 0300N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 084417 0300N quantity

Add to basket

This gas spring is also known as CA084417.

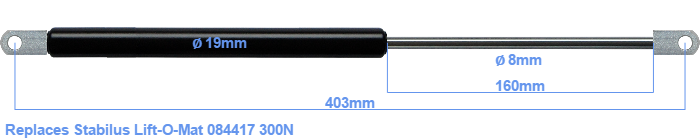

The bore of the house of this replacement gas spring is 19 mm. The cross section of the rod is 8 mm. The stroke of the gas spring is 160 millimeter. The total length of this replacement is exactly 403 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 365 millimeter. This replacement gas spring (084417) has a force of 300 Newton (N). This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost equal.
