Replacement for Stabilus Lift-O-Mat 084395 0100N

$40.97



Replacement gas spring for the Stabilus Lift-O-Mat 084395 0100N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 084395 0100N quantity

Add to basket

This gas spring is also known as CA084395.

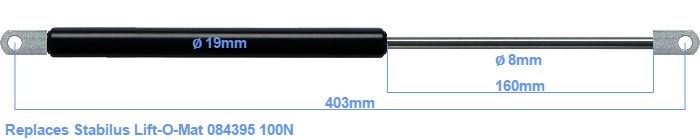

The diameter of the cylinder of this gas spring is 19 mm. The cross section of the rod is 8 mm. The stroke (the retracting part) has a length of 160 mm. The total length of this replacement is exactly 403 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 365 millimeter. The force of this replacement is 100 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. The force (100 N) and dimensions are almost identical to the original.
