Replacement for Stabilus Lift-O-Mat 084263 0700N

$36.77



Replacement gas spring for the Stabilus Lift-O-Mat 084263 0700N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 084263 0700N quantity

Add to basket

This gas spring is also known as CA084263.

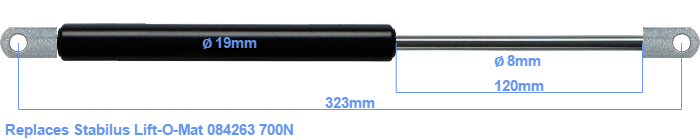

The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod is 8 millimeter. The rod (the chrome part) is 120 mm long. In total, the length is 323 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 285 mm. This replacement gas spring has a force of 700 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost equal.
