Replacement for Stabilus Lift-O-Mat 084247 0500N

$36.77



Replacement gas spring for the Stabilus Lift-O-Mat 084247 0500N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 084247 0500N quantity

Add to basket

This gas spring is also known as CA084247.

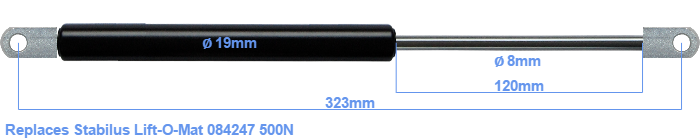

The diameter of the black cylinder of this gas spring is 19 millimeter. The cross section of the rod is 8 mm. The stroke is 120 millimeter long. The total length of this replacement is exactly 323 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 285 mm long (thread to thread). This replacement gas spring (084247) has a force of 500 Newton (N). This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force close to equal.
