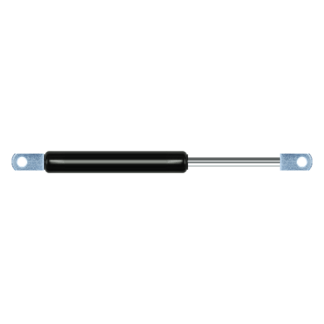

Replacement for Stabilus Lift-O-Mat 084115 0700N

$35.07



Replacement gas spring for the Stabilus Lift-O-Mat 084115 0700N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 084115 0700N quantity

Add to basket

This gas spring is also known as CA084115.

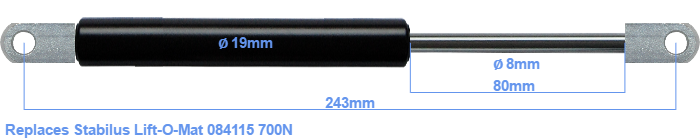

The bore of the house of this replacement gas spring is 19 mm. The rod has a diameter of 8 mm. The stroke of the gas spring is 80 millimeter. The total length of this replacement gas spring is 243 mm. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 205 mm long (thread to thread). This replacement gas spring (084115) has a force of 700 Newton (N). Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This replacement gas spring is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost entirely equal.
