Replacement for Stabilus Lift-O-Mat 083925 0500N

$49.51



Out of Stock until approximately 12/3/2024

Replacement gas spring for the Stabilus Lift-O-Mat 083925 0500N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 083925 0500N quantity

Add to basket

This gas spring is also known as CA083925.

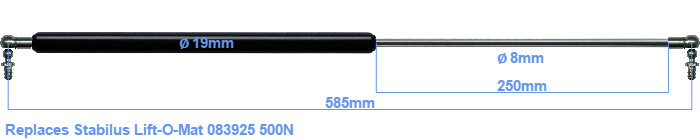

The bore of the house of this replacement gas spring is 19 mm. The cross section of the rod is 8 mm. The stroke of the gas spring is 250 millimeter. In total, the length is 585 millimeter. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 545 millimeter. This replacement gas spring (083925) has a force of 500 Newton (N). Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
