Replacement for Stabilus Lift-O-Mat 083844 0400N

$61.85



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 083844 0400N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 083844 0400N quantity

Add to basket

This gas spring is also known as CA083844.

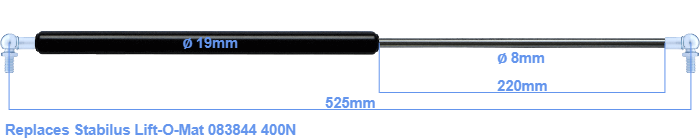

The diameter of the cylinder of this gas spring is 19 mm. The rod has a diameter of 8 mm. The stroke of the gas spring is 220 millimeter. The total length of this replacement gas spring is 525 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 485 mm. The force of this replacement gas spring is 400 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
