Replacement for Stabilus Lift-O-Mat 083763 0500N

$48.16



Replacement gas spring for the Stabilus Lift-O-Mat 083763 0500N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 083763 0500N quantity

Add to basket

This gas spring is also known as CA083763.

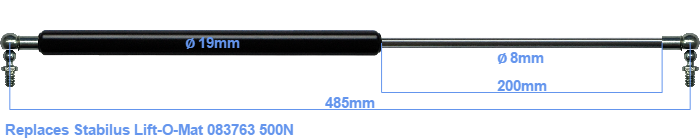

The diameter of the cylinder of this gas spring is 19 millimeters. The diameter of the rod totals 8 mm. The stroke of the gas spring is 200 millimeter. The total length of this gas strut is 485 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 445 mm. This gas spring (083763) has a force of 500 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
