Replacement for Stabilus Lift-O-Mat 083755 0400N

$48.16



Replacement gas spring for the Stabilus Lift-O-Mat 083755 0400N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 083755 0400N quantity

Add to basket

This gas spring is also known as CA083755.

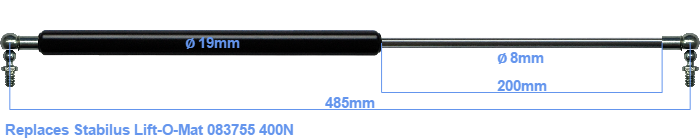

This gas spring has a cylinder diameter of 19 mm. The rod has a diameter of 8 mm. The stroke of the gas spring is 200 millimeter. The total length of this gas strut is 485 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 445 mm. This gas spring (083755) has a force of 400 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This replacement gas spring is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
