Replacement for Stabilus Lift-O-Mat 083119 0050N

$37.25



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 083119 0050N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 083119 0050N quantity

Add to basket

This gas spring is also known as CA083119.

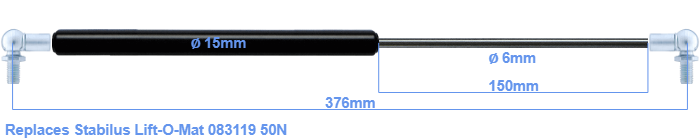

The diameter of the cylinder of this gas spring is 15 mm. The rod has a diameter of 6 mm. The stroke (the retracting part) has a length of 150 mm. The total length of this replacement gas spring is 376 mm. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 332 mm. This gas spring (083119) has a force of 50 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This a gas spring with the brand HAHN. Nevertheless, the force and dimensions equal.
