Replacement for Stabilus Lift-O-Mat 083089 0250N

$37.02



Replacement gas spring for the Stabilus Lift-O-Mat 083089 0250N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 083089 0250N quantity

Add to basket

This gas spring is also known as CA083089.

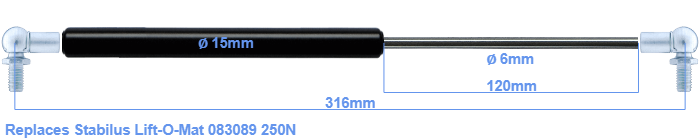

The diameter of the cylinder of this gas spring is 15 millimeters. The rod has a diameter of 6 mm. The rod (the chrome part) is 120 mm long. In total, the length is 316 millimeter. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 272 mm long (thread to thread). The force of this replacement gas spring is 250 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
