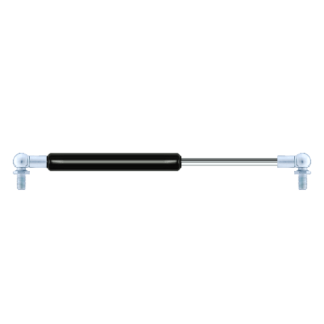

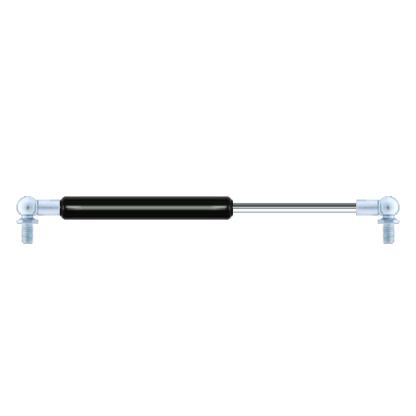

Replacement for Stabilus Lift-O-Mat 082945 0350N

$36.56



Replacement gas spring for the Stabilus Lift-O-Mat 082945 0350N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 082945 0350N quantity

Add to basket

This gas spring is also known as CA082945.

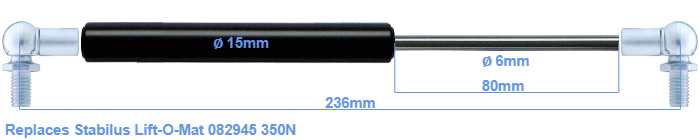

The diameter of the cylinder of this gas spring is 15 millimeters. The diameter of the rod is 6 millimeter. The stroke (the retracting part) has a length of 80 mm. The total length of this replacement is 236 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 192 mm. The force of this replacement gas spring is 350 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This a gas spring with the brand HAHN. The force (350 N) and dimensions are identical to the original.
