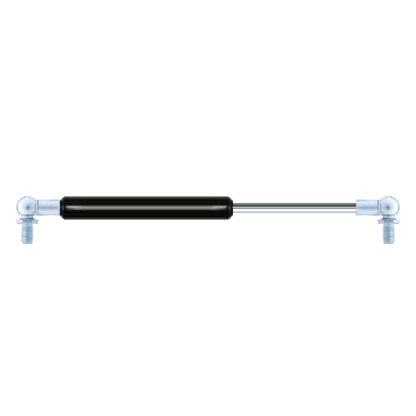

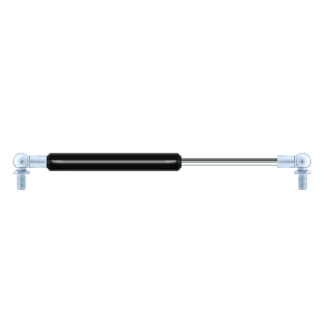

Replacement for Stabilus Lift-O-Mat 082902 0150N

$36.56



Replacement gas spring for the Stabilus Lift-O-Mat 082902 0150N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 082902 0150N quantity

Add to basket

This gas spring is also known as CA082902.



This gas spring has a cylinder diameter of 15 mm. The cross section of the rod is 6 mm. The stroke (the retracting part) has a length of 80 mm. The total length of this replacement is exactly 236 mm. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 192 mm long (thread to thread). This gas spring (082902) has a force of 150 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the force and dimensions equal.
