$36.36




Replacement gas spring for the Stabilus Lift-O-Mat 082864 0300N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.
This gas spring is also known as CA082864.
Stabilus Lift-O-Mat 082864
WX22
elbow ball removal

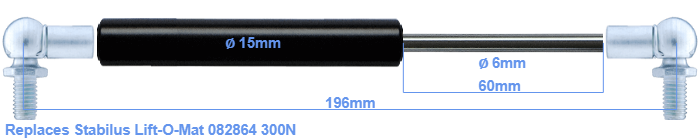

The bore of the house of this replacement gas spring is 15 mm. The diameter of the rod totals 6 mm. The stroke of the gas spring is 60 millimeter. The total length of this replacement gas spring is 196 mm. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 152 mm long (thread to thread). The force of this replacement is 300 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
