Replacement for Stabilus Lift-O-Mat 082546 0300N

$33.53



Replacement gas spring for the Stabilus Lift-O-Mat 082546 0300N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 082546 0300N quantity

Add to basket

This gas spring is also known as CA082546.

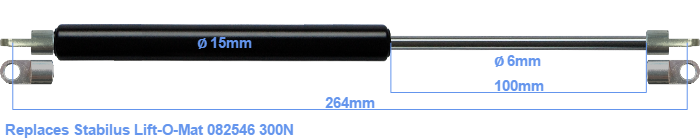

The diameter of the cylinder of this gas spring is 15 mm. The diameter of the rod totals 6 mm. The stroke (the retracting part) has a length of 100 mm. The total length of this gas strut is 264 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 232 mm. The force of this replacement gas spring is 300 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This a gas spring with the brand HAHN. The force (300 N) and dimensions are almost identical to the original.
