Replacement for Stabilus Lift-O-Mat 074820 0400N

$46.79



Replacement gas spring for the Stabilus Lift-O-Mat 074820 0400N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 074820 0400N quantity

Add to basket

This gas spring is also known as CA074820.

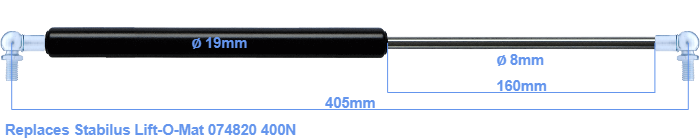

The diameter of the cylinder of this gas spring is 19 mm. The diameter of the rod is 8 millimeter. The chrome part is called the rod. It has a length of 160 mm. The total length of this replacement is exactly 405 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 365 mm. This replacement gas spring (074820) has a force of 400 Newton (N). This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This is a HAHN gas spring. Nevertheless, the force and dimensions equal.
