Replacement for Stabilus Lift-O-Mat 062723 0800N

$65.73

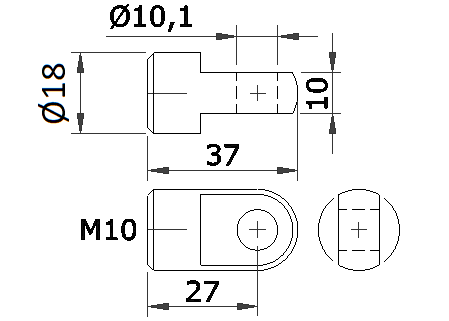

Replacement gas spring for the Stabilus Lift-O-Mat 062723 0800N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 062723 0800N quantity

Add to basket

This gas spring is also known as CA062723.



This gas spring has a cylinder diameter of 28 mm. The cross section of the rod is 14 mm. The chrome part is called the rod. It has a length of 350 mm. The total length of this gas strut is 802 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 748 mm. This replacement gas spring has a force of 800 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost equal.
