Replacement for Stabilus Lift-O-Mat 0449WE 0365N

$42.59



Replacement gas spring for the Stabilus Lift-O-Mat 0449WE 0365N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 0449WE 0365N quantity

Add to basket

This gas spring is also known as CA0449WE.

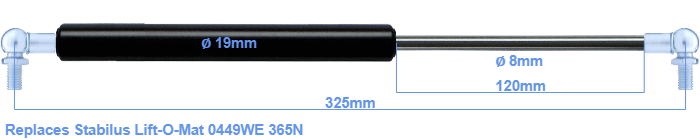

The diameter of the cylinder of this gas spring is 19 millimeters. The diameter of the rod is 8 millimeter. The stroke (the retracting part) has a length of 120 mm. The total length of this gas strut is 325 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 285 millimeter. The force of this replacement gas spring is 365 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This replacement gas spring is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force almost entirely equal.
