Replacement for Stabilus Lift-O-Mat 003092 0150N

$61.85



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 003092 0150N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 003092 0150N quantity

Add to basket

This gas spring is also known as CA003092.

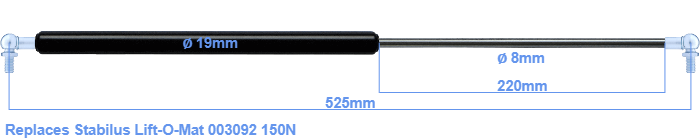

The diameter of the black cylinder of this gas spring is 19 millimeter. The rod has a diameter of 8 mm. The stroke is 220 millimeter long. The total length of this replacement is exactly 525 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 485 mm. This replacement gas spring (003092) has a force of 150 Newton (N). This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The force (150 N) and dimensions are close to identical to the original.
