$41.57



Out of Stock until approximately 12/3/2024


Replacement gas spring for the Novotec 512523 80-1250 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 21mm.


    • View this gas spring in our configurator.

    Novotec 512523
    AR19

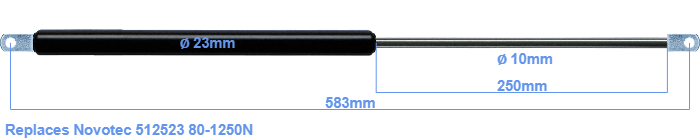

    This gas spring has a cylinder diameter of 23 mm. The diameter of the rod totals 10 mm. The stroke of the gas spring is 250 millimeter. The total length of this replacement gas spring is 583 mm. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 545 mm long (thread to thread). The force of this replacement is 80-1250 Newton. This is not an original gas spring from Novotec, but a so called replacement gas spring. This is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost entirely equal.
    Category:
    Replacement for Novotec 512523 80-1250N
