Replacement for Lesjöfors 9075 100N

$33.10



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Lesjöfors 9075 100 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Lesjöfors 9075 100N quantity

Add to basket

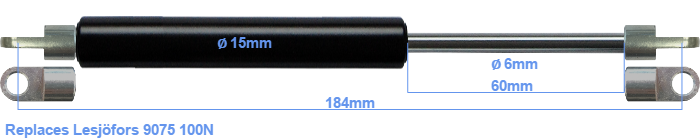

The diameter of the cylinder of this gas spring is 15 millimeters. The cross section of the rod is 6 mm. The stroke (the retracting part) has a length of 60 mm. The total length of this replacement gas spring is 184 mm. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 152 millimeter. This replacement gas spring (9075) has a force of 100 Newton (N). This is not an official Lesjöfors gas spring, but a so called replacement. This replacement gas spring is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force close to equal.
