$46.36
Replacement gas spring for the Bansbach L2M2-45-150-401--0XX 150-2500 Newton. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.
Please note:
Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 12mm.
View this gas spring in our configurator.

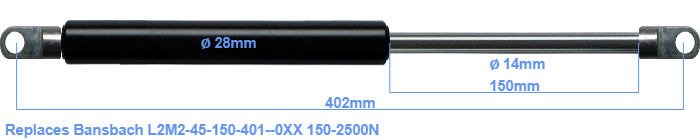

The bore of the house of this replacement gas spring is 28 mm. The cross section of the rod is 14 mm. The stroke (the retracting part) has a length of 150 mm. The total length of this replacement gas spring is 402 mm. Keep in mind that this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 348 mm. This replacement gas spring has a force of 150-2500 Newton. Attention: this is not an official Bansbach gas spring, but a replacement gas spring. This replacement gas spring is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
