$43.06




Replacement gas spring for the Bansbach K2J2-42-300-683--0XX 80-1250 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 12mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.

    Bansbach K2J2-42-300-683--0XX
    AR19

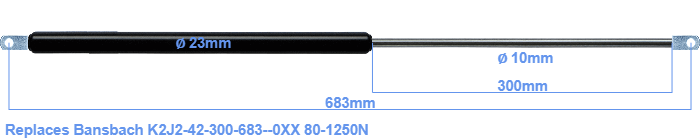

    The bore of the house of this replacement gas spring is 23 mm. The cross section of the rod is 10 mm. The stroke of the gas spring is 300 millimeter. The total length of this replacement is exactly 683 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 645 mm. The force of this replacement is 80-1250 Newton. This is not an original gas spring produced by Bansbach, but it can replace a Bansbach gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
    Category:
    Replacement for Bansbach K2J2-42-300-683--0XX 80-1250N
