Replacement for Bansbach K2J2-40-50-184–0XX 50-800N

$30.32

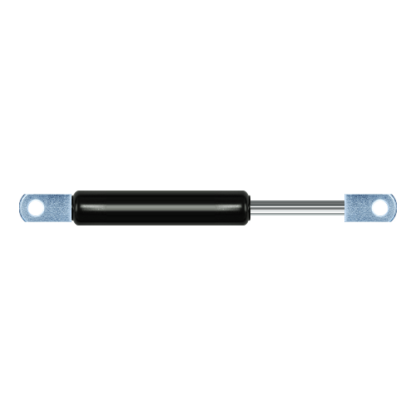

Replacement gas spring for the Bansbach K2J2-40-50-184--0XX 50-800 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 12mm.

View this gas spring in our configurator.

Force

Choose an option50 Newton | 11.2 lbs.60 Newton | 13.5 lbs.80 Newton | 18.0 lbs.100 Newton | 22.5 lbs.120 Newton | 27.0 lbs.140 Newton | 31.5 lbs.150 Newton | 33.7 lbs.160 Newton | 36.0 lbs.180 Newton | 40.5 lbs.200 Newton | 45.0 lbs.220 Newton | 49.5 lbs.240 Newton | 54.0 lbs.250 Newton | 56.2 lbs.260 Newton | 58.5 lbs.280 Newton | 62.9 lbs.300 Newton | 67.4 lbs.320 Newton | 71.9 lbs.340 Newton | 76.4 lbs.350 Newton | 78.7 lbs.360 Newton | 80.9 lbs.380 Newton | 85.4 lbs.400 Newton | 89.9 lbs.420 Newton | 94.4 lbs.440 Newton | 98.9 lbs.450 Newton | 101.2 lbs.460 Newton | 103.4 lbs.480 Newton | 107.9 lbs.500 Newton | 112.4 lbs.520 Newton | 116.9 lbs.540 Newton | 121.4 lbs.550 Newton | 123.6 lbs.560 Newton | 125.9 lbs.580 Newton | 130.4 lbs.600 Newton | 134.9 lbs.620 Newton | 139.4 lbs.640 Newton | 143.9 lbs.650 Newton | 146.1 lbs.660 Newton | 148.4 lbs.680 Newton | 152.9 lbs.700 Newton | 157.4 lbs.720 Newton | 161.9 lbs.740 Newton | 166.4 lbs.750 Newton | 168.6 lbs.760 Newton | 170.9 lbs.780 Newton | 175.4 lbs.800 Newton | 179.8 lbs.Clear

Replacement for Bansbach K2J2-40-50-184--0XX 50-800N quantity

Add to basket

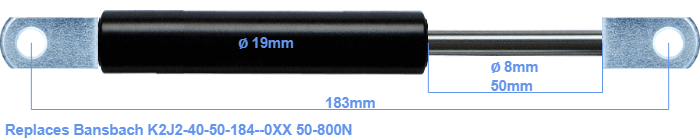

The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod is 8 millimeter. The rod (the chrome part) is 50 mm long. The total length of this gas strut is 183 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 145 mm. This replacement gas spring has a force of 50-800 Newton. This gas spring can replace a Bansbach gas spring, but is not an orignal Bansbach one. This is a HAHN gas spring. The force (50-800 N) and dimensions are nearly identical to the original.
