$38.56



Out of Stock until approximately 12/3/2024


Replacement gas spring for the Bansbach J2A1-42-150-383--0XX 80-1250 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 8mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.

    Bansbach J2A1-42-150-383--0XX
    AR19

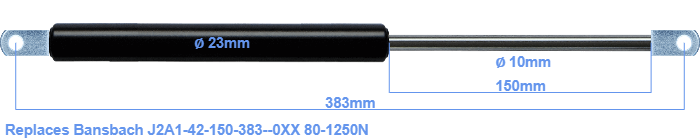

    The diameter of the cylinder of this gas spring is 23 mm. The diameter of the rod is 10 millimeter. The stroke of the gas spring is 150 millimeter. The total length of this replacement gas spring is 383 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 345 mm long (thread to thread). This replacement gas spring (J2A1-42-150-383--0XX) has a force of 80-1250 Newton (N). This is not an original gas spring from Bansbach, but a so called replacement gas spring. This a gas spring with the brand HAHN. Nevertheless, the force and dimensions almost equal.
    Category:
    Replacement for Bansbach J2A1-42-150-383--0XX 80-1250N
