Replacement for Bansbach G5G5-46-100-278–0XX 30-450N

$37.69



Replacement gas spring for the Bansbach G5G5-46-100-278--0XX 30-450 Newton. The fork has a hole diameter of 5.1mm. Brand: HAHN, a Stabilus company.

Please note:
This replacement gas spring is 6mm shorter than the original gas spring. In general, this will not cause any problems.

View this gas spring in our configurator.

Force

Choose an option30 Newton | 6.7 lbs.40 Newton | 9.0 lbs.50 Newton | 11.2 lbs.60 Newton | 13.5 lbs.80 Newton | 18.0 lbs.100 Newton | 22.5 lbs.120 Newton | 27.0 lbs.140 Newton | 31.5 lbs.150 Newton | 33.7 lbs.160 Newton | 36.0 lbs.180 Newton | 40.5 lbs.200 Newton | 45.0 lbs.220 Newton | 49.5 lbs.240 Newton | 54.0 lbs.250 Newton | 56.2 lbs.260 Newton | 58.5 lbs.280 Newton | 62.9 lbs.300 Newton | 67.4 lbs.320 Newton | 71.9 lbs.340 Newton | 76.4 lbs.350 Newton | 78.7 lbs.360 Newton | 80.9 lbs.380 Newton | 85.4 lbs.400 Newton | 89.9 lbs.420 Newton | 94.4 lbs.440 Newton | 98.9 lbs.450 Newton | 101.2 lbs.Clear

Replacement for Bansbach G5G5-46-100-278--0XX 30-450N quantity

Add to basket

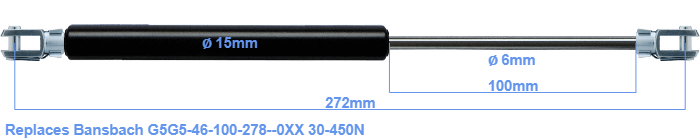

This gas spring has a cylinder diameter of 15 mm. The diameter of the rod totals 6 mm. The stroke of the gas spring is 100 millimeter. The total length of this replacement gas spring is 272 mm. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 232 mm. The force of this replacement gas spring is 30-450 Newton. This is not an original gas spring produced by Bansbach, but it can replace a Bansbach gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force almost equal.
