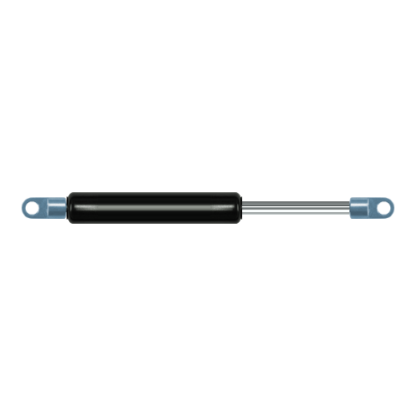

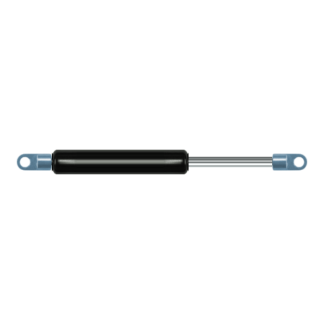

Replacement for Bansbach F1D1-46-50-162–0XX 30-450N

$32.18



Replacement gas spring for the Bansbach F1D1-46-50-162--0XX 30-450 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
Mounting part rod : The thickness of the eye of this replacement is 3mm instead of 6mm.

View this gas spring in our configurator.

Force

Choose an option30 Newton | 6.7 lbs.40 Newton | 9.0 lbs.50 Newton | 11.2 lbs.60 Newton | 13.5 lbs.80 Newton | 18.0 lbs.100 Newton | 22.5 lbs.120 Newton | 27.0 lbs.140 Newton | 31.5 lbs.150 Newton | 33.7 lbs.160 Newton | 36.0 lbs.180 Newton | 40.5 lbs.200 Newton | 45.0 lbs.220 Newton | 49.5 lbs.240 Newton | 54.0 lbs.250 Newton | 56.2 lbs.260 Newton | 58.5 lbs.280 Newton | 62.9 lbs.300 Newton | 67.4 lbs.320 Newton | 71.9 lbs.340 Newton | 76.4 lbs.350 Newton | 78.7 lbs.360 Newton | 80.9 lbs.380 Newton | 85.4 lbs.400 Newton | 89.9 lbs.420 Newton | 94.4 lbs.440 Newton | 98.9 lbs.450 Newton | 101.2 lbs.Clear

Replacement for Bansbach F1D1-46-50-162--0XX 30-450N quantity

Add to basket

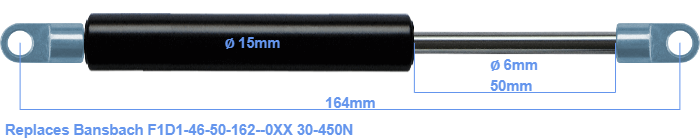

The diameter of the black cylinder of this gas spring is 15 millimeter. The diameter of the rod is 6 millimeter. The chrome part is called the rod. It has a length of 50 mm. The total length of this replacement is 164 millimeter. Keep in mind that this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 132 mm. This replacement gas spring has a force of 30-450 Newton. This is not an original gas spring produced by Bansbach, but it can replace a Bansbach gas spring. This is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force close to equal.
