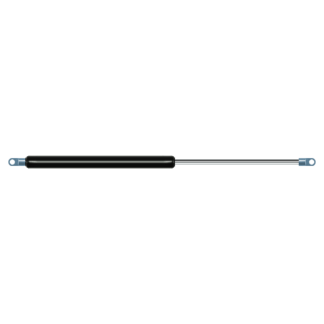

Replacement for Bansbach F1D1-46-150-362–0XX 30-450N

$33.99



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Bansbach F1D1-46-150-362--0XX 30-450 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
Mounting part rod : The thickness of the eye of this replacement is 3mm instead of 6mm.

View this gas spring in our configurator.

Force

Choose an option30 Newton | 6.7 lbs.40 Newton | 9.0 lbs.50 Newton | 11.2 lbs.60 Newton | 13.5 lbs.80 Newton | 18.0 lbs.100 Newton | 22.5 lbs.120 Newton | 27.0 lbs.140 Newton | 31.5 lbs.150 Newton | 33.7 lbs.160 Newton | 36.0 lbs.180 Newton | 40.5 lbs.200 Newton | 45.0 lbs.220 Newton | 49.5 lbs.240 Newton | 54.0 lbs.250 Newton | 56.2 lbs.260 Newton | 58.5 lbs.280 Newton | 62.9 lbs.300 Newton | 67.4 lbs.320 Newton | 71.9 lbs.340 Newton | 76.4 lbs.350 Newton | 78.7 lbs.360 Newton | 80.9 lbs.380 Newton | 85.4 lbs.400 Newton | 89.9 lbs.420 Newton | 94.4 lbs.440 Newton | 98.9 lbs.450 Newton | 101.2 lbs.Clear

Replacement for Bansbach F1D1-46-150-362--0XX 30-450N quantity

Add to basket

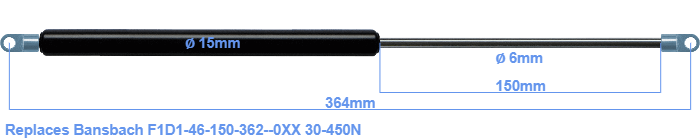

This gas spring has a cylinder diameter of 15 mm. The rod has a diameter of 6 mm. The stroke is 150 millimeter long. The total length of this replacement gas spring is 364 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 332 mm long (thread to thread). This gas spring (F1D1-46-150-362--0XX) has a force of 30-450 Newton. This is not an original gas spring from Bansbach, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force almost entirely equal.
