Replacement for Bansbach E5E5-46-80-238–0XX 30-450N

$37.46



Replacement gas spring for the Bansbach E5E5-46-80-238--0XX 30-450 Newton. The fork has a hole diameter of 5.1mm. Brand: HAHN, a Stabilus company.

Please note:
This replacement gas spring is 6mm shorter than the original gas spring. In general, this will not cause any problems.

View this gas spring in our configurator.

Force

Choose an option30 Newton | 6.7 lbs.40 Newton | 9.0 lbs.50 Newton | 11.2 lbs.60 Newton | 13.5 lbs.80 Newton | 18.0 lbs.100 Newton | 22.5 lbs.120 Newton | 27.0 lbs.140 Newton | 31.5 lbs.150 Newton | 33.7 lbs.160 Newton | 36.0 lbs.180 Newton | 40.5 lbs.200 Newton | 45.0 lbs.220 Newton | 49.5 lbs.240 Newton | 54.0 lbs.250 Newton | 56.2 lbs.260 Newton | 58.5 lbs.280 Newton | 62.9 lbs.300 Newton | 67.4 lbs.320 Newton | 71.9 lbs.340 Newton | 76.4 lbs.350 Newton | 78.7 lbs.360 Newton | 80.9 lbs.380 Newton | 85.4 lbs.400 Newton | 89.9 lbs.420 Newton | 94.4 lbs.440 Newton | 98.9 lbs.450 Newton | 101.2 lbs.Clear

Replacement for Bansbach E5E5-46-80-238--0XX 30-450N quantity

Add to basket

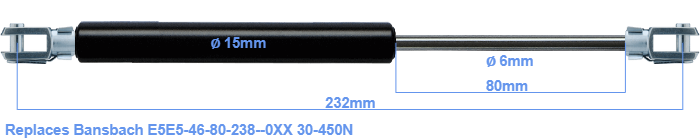

The diameter of the black cylinder of this gas spring is 15 millimeter. The rod has a diameter of 6 mm. The stroke of the gas spring is 80 millimeter. The total length of this gas strut is 232 mm. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 192 mm long (thread to thread). This replacement gas spring has a force of 30-450 Newton. This is not an official Bansbach gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the force and dimensions close to equal.
