Replacement for Bansbach E5E5-46-50-178–0XX 30-450N

$36.34



Replacement gas spring for the Bansbach E5E5-46-50-178--0XX 30-450 Newton. The fork has a hole diameter of 5.1mm. Brand: HAHN, a Stabilus company.

Please note:
This replacement gas spring is 6mm shorter than the original gas spring. In general, this will not cause any problems.

View this gas spring in our configurator.

Force

Choose an option30 Newton | 6.7 lbs.40 Newton | 9.0 lbs.50 Newton | 11.2 lbs.60 Newton | 13.5 lbs.80 Newton | 18.0 lbs.100 Newton | 22.5 lbs.120 Newton | 27.0 lbs.140 Newton | 31.5 lbs.150 Newton | 33.7 lbs.160 Newton | 36.0 lbs.180 Newton | 40.5 lbs.200 Newton | 45.0 lbs.220 Newton | 49.5 lbs.240 Newton | 54.0 lbs.250 Newton | 56.2 lbs.260 Newton | 58.5 lbs.280 Newton | 62.9 lbs.300 Newton | 67.4 lbs.320 Newton | 71.9 lbs.340 Newton | 76.4 lbs.350 Newton | 78.7 lbs.360 Newton | 80.9 lbs.380 Newton | 85.4 lbs.400 Newton | 89.9 lbs.420 Newton | 94.4 lbs.440 Newton | 98.9 lbs.450 Newton | 101.2 lbs.Clear

Replacement for Bansbach E5E5-46-50-178--0XX 30-450N quantity

Add to basket

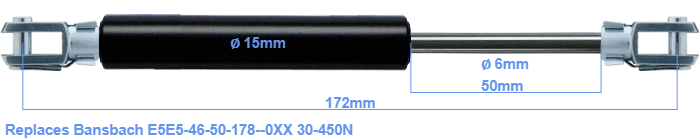

The bore of the house of this replacement gas spring is 15 mm. The rod has a diameter of 6 mm. The chrome part is called the rod. It has a length of 50 mm. The total length of this replacement is exactly 172 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 132 millimeter. This gas spring (E5E5-46-50-178--0XX) has a force of 30-450 Newton. This gas spring can replace a Bansbach gas spring, but is not an orignal Bansbach one. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the dimensions and force are close to equal.
