Replacement for Bansbach D1D1-56-120-305–0XX 30-450N

$33.76



Replacement gas spring for the Bansbach D1D1-56-120-305--0XX 30-450 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Force

Choose an option30 Newton | 6.7 lbs.40 Newton | 9.0 lbs.50 Newton | 11.2 lbs.60 Newton | 13.5 lbs.80 Newton | 18.0 lbs.100 Newton | 22.5 lbs.120 Newton | 27.0 lbs.140 Newton | 31.5 lbs.150 Newton | 33.7 lbs.160 Newton | 36.0 lbs.180 Newton | 40.5 lbs.200 Newton | 45.0 lbs.220 Newton | 49.5 lbs.240 Newton | 54.0 lbs.250 Newton | 56.2 lbs.260 Newton | 58.5 lbs.280 Newton | 62.9 lbs.300 Newton | 67.4 lbs.320 Newton | 71.9 lbs.340 Newton | 76.4 lbs.350 Newton | 78.7 lbs.360 Newton | 80.9 lbs.380 Newton | 85.4 lbs.400 Newton | 89.9 lbs.420 Newton | 94.4 lbs.440 Newton | 98.9 lbs.450 Newton | 101.2 lbs.Clear

Replacement for Bansbach D1D1-56-120-305--0XX 30-450N quantity

Add to basket

This gas spring is also known as Winco Easylift D1D1-56-120-305, A1N1 F56-120-305--0XX.

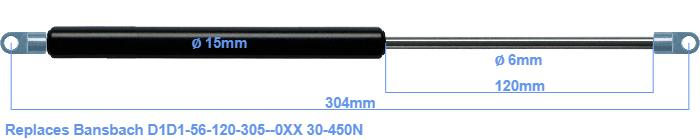

The bore of the house of this replacement gas spring is 15 mm. The diameter of the rod is 6 millimeter. The stroke (the retracting part) has a length of 120 mm. The total length of this replacement is exactly 304 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 272 mm long (thread to thread). The force of this replacement is 30-450 Newton. This gas spring can replace a Bansbach gas spring, but is not an orignal Bansbach one. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
