Replacement for Bansbach D1D1-46-60-182–0XX 30-450N

$33.10



Out of Stock until approximately 12/3/2024.

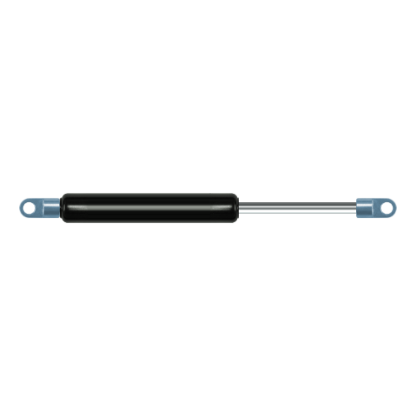

Replacement gas spring for the Bansbach D1D1-46-60-182--0XX 30-450 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Force

Choose an option30 Newton | 6.7 lbs.40 Newton | 9.0 lbs.50 Newton | 11.2 lbs.60 Newton | 13.5 lbs.80 Newton | 18.0 lbs.100 Newton | 22.5 lbs.120 Newton | 27.0 lbs.140 Newton | 31.5 lbs.150 Newton | 33.7 lbs.160 Newton | 36.0 lbs.180 Newton | 40.5 lbs.200 Newton | 45.0 lbs.220 Newton | 49.5 lbs.240 Newton | 54.0 lbs.250 Newton | 56.2 lbs.260 Newton | 58.5 lbs.280 Newton | 62.9 lbs.300 Newton | 67.4 lbs.320 Newton | 71.9 lbs.340 Newton | 76.4 lbs.350 Newton | 78.7 lbs.360 Newton | 80.9 lbs.380 Newton | 85.4 lbs.400 Newton | 89.9 lbs.420 Newton | 94.4 lbs.440 Newton | 98.9 lbs.450 Newton | 101.2 lbs.Clear

Replacement for Bansbach D1D1-46-60-182--0XX 30-450N quantity

Add to basket

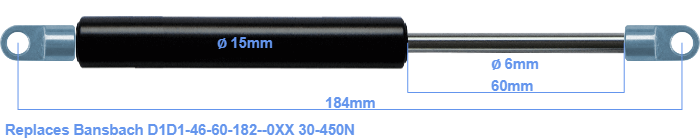

The diameter of the cylinder of this gas spring is 15 mm. The cross section of the rod is 6 mm. The stroke of the gas spring is 60 millimeter. The total length of this gas strut is 184 mm. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 152 mm. This replacement gas spring has a force of 30-450 Newton. This is not an official Bansbach gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the dimensions and force are equal.
