Replacement for Bansbach B2M2-45-200-501–0XX 150-2500N

$51.21



Out of Stock until approximately 12/3/2024

Replacement gas spring for the Bansbach B2M2-45-200-501--0XX 150-2500 Newton. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:
Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Force

Choose an option150 Newton | 33.7 lbs.200 Newton | 45.0 lbs.250 Newton | 56.2 lbs.300 Newton | 67.4 lbs.350 Newton | 78.7 lbs.400 Newton | 89.9 lbs.450 Newton | 101.2 lbs.500 Newton | 112.4 lbs.550 Newton | 123.6 lbs.600 Newton | 134.9 lbs.650 Newton | 146.1 lbs.700 Newton | 157.4 lbs.750 Newton | 168.6 lbs.800 Newton | 179.8 lbs.850 Newton | 191.1 lbs.900 Newton | 202.3 lbs.950 Newton | 213.6 lbs.1000 Newton | 224.8 lbs.1050 Newton | 236.0 lbs.1100 Newton | 247.3 lbs.1150 Newton | 258.5 lbs.1200 Newton | 269.8 lbs.1250 Newton | 281.0 lbs.1300 Newton | 292.3 lbs.1350 Newton | 303.5 lbs.1400 Newton | 314.7 lbs.1450 Newton | 326.0 lbs.1500 Newton | 337.2 lbs.1550 Newton | 348.5 lbs.1600 Newton | 359.7 lbs.1650 Newton | 370.9 lbs.1700 Newton | 382.2 lbs.1750 Newton | 393.4 lbs.1800 Newton | 404.7 lbs.1850 Newton | 415.9 lbs.1900 Newton | 427.1 lbs.1950 Newton | 438.4 lbs.2000 Newton | 449.6 lbs.2050 Newton | 460.9 lbs.2100 Newton | 472.1 lbs.2150 Newton | 483.3 lbs.2200 Newton | 494.6 lbs.2250 Newton | 505.8 lbs.2300 Newton | 517.1 lbs.2350 Newton | 528.3 lbs.2400 Newton | 539.5 lbs.2450 Newton | 550.8 lbs.2500 Newton | 562.0 lbs.Clear

Replacement for Bansbach B2M2-45-200-501--0XX 150-2500N quantity

Add to basket

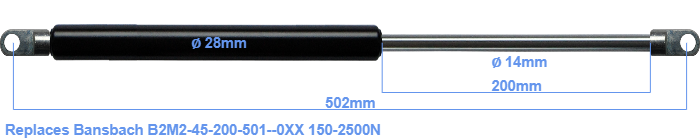

The diameter of the cylinder of this gas spring is 28 millimeters. The cross section of the rod is 14 mm. The stroke (the retracting part) has a length of 200 mm. In total, the length is 502 millimeter. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 448 millimeter. This replacement gas spring (B2M2-45-200-501--0XX) has a force of 150-2500 Newton (N). This is not an original gas spring produced by Bansbach, but it can replace a Bansbach gas spring. This a gas spring with the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
