Replacement for Bansbach A1X3-42-300-683–0XX 80-1250N

$43.06

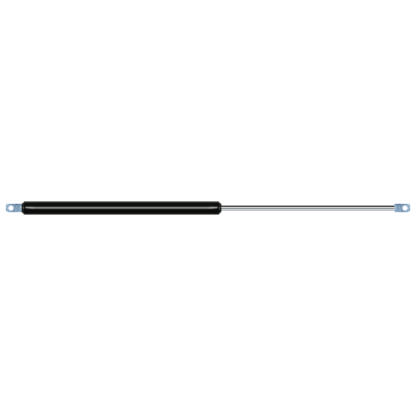

Replacement gas spring for the Bansbach A1X3-42-300-683--0XX 80-1250 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 14mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Force

Choose an option80 Newton | 18.0 lbs.100 Newton | 22.5 lbs.120 Newton | 27.0 lbs.140 Newton | 31.5 lbs.150 Newton | 33.7 lbs.160 Newton | 36.0 lbs.180 Newton | 40.5 lbs.200 Newton | 45.0 lbs.220 Newton | 49.5 lbs.240 Newton | 54.0 lbs.250 Newton | 56.2 lbs.260 Newton | 58.5 lbs.280 Newton | 62.9 lbs.300 Newton | 67.4 lbs.320 Newton | 71.9 lbs.340 Newton | 76.4 lbs.350 Newton | 78.7 lbs.360 Newton | 80.9 lbs.380 Newton | 85.4 lbs.400 Newton | 89.9 lbs.420 Newton | 94.4 lbs.440 Newton | 98.9 lbs.450 Newton | 101.2 lbs.460 Newton | 103.4 lbs.480 Newton | 107.9 lbs.500 Newton | 112.4 lbs.520 Newton | 116.9 lbs.540 Newton | 121.4 lbs.550 Newton | 123.6 lbs.560 Newton | 125.9 lbs.580 Newton | 130.4 lbs.600 Newton | 134.9 lbs.620 Newton | 139.4 lbs.640 Newton | 143.9 lbs.650 Newton | 146.1 lbs.660 Newton | 148.4 lbs.680 Newton | 152.9 lbs.700 Newton | 157.4 lbs.720 Newton | 161.9 lbs.740 Newton | 166.4 lbs.750 Newton | 168.6 lbs.760 Newton | 170.9 lbs.780 Newton | 175.4 lbs.800 Newton | 179.8 lbs.820 Newton | 184.3 lbs.840 Newton | 188.8 lbs.850 Newton | 191.1 lbs.860 Newton | 193.3 lbs.880 Newton | 197.8 lbs.900 Newton | 202.3 lbs.920 Newton | 206.8 lbs.940 Newton | 211.3 lbs.950 Newton | 213.6 lbs.960 Newton | 215.8 lbs.980 Newton | 220.3 lbs.1000 Newton | 224.8 lbs.1020 Newton | 229.3 lbs.1040 Newton | 233.8 lbs.1050 Newton | 236.0 lbs.1060 Newton | 238.3 lbs.1080 Newton | 242.8 lbs.1100 Newton | 247.3 lbs.1120 Newton | 251.8 lbs.1140 Newton | 256.3 lbs.1150 Newton | 258.5 lbs.1160 Newton | 260.8 lbs.1180 Newton | 265.3 lbs.1200 Newton | 269.8 lbs.1220 Newton | 274.3 lbs.1240 Newton | 278.8 lbs.1250 Newton | 281.0 lbs.Clear

Replacement for Bansbach A1X3-42-300-683--0XX 80-1250N quantity

Add to basket

The diameter of the cylinder of this gas spring is 23 mm. The diameter of the rod totals 10 mm. The stroke (the retracting part) has a length of 300 mm. The total length of this replacement gas spring is 683 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 645 mm. The force of this replacement is 80-1250 Newton. This is not an official Bansbach gas spring, but a so called replacement. This replacement gas spring is a HAHN gas spring. Nevertheless, the force and dimensions close to equal.
